Water Ring Pelletizer Application:
1. PE, Eva etc + Caco3, talk, Tio92, filling modification and carbon black etc.
2. LDPE, HDPE, LLDPE,MDPE, drivepipe, insulation material, crosslinking material, cable coating material, thermal contraction pipe material etc.
3. PPR pipe compounds, PE crosslinking tube material, TPR, TPU thermoplastic elastomer, EVA and hot melt adhesive etc.
4. PE, ABS, PS, EVA masterbatch etc.
5. ABS, EVA flaming retarding masterbatch etc.
6. PE, PP, PS filling and biodegradable masterbatch, etc.
Quick details of sjsl36 water ring pelletizer
Screw diameter:35.6mm
Screw material:W6Mo5Cr4V2
Barrel diameter:36mm
Barrel material:W6Mo5Cr4V2
Motor power:15kw
Motor brand:SIEMENS
L/D:44:1
Output:30-80kg/h
Interlock control
1). The extruder motor is set up the current overload to achieve chain shutdown protection with electric control cabinet.
2). The control system of main machine motor is interlocked with control system of feeder motor as a way of protection mutually.
3). Transmission gearbox and lubrication system are interlocked for protection.
4). The extruder is set up the pressure overload to achieve chain shutdown protection with electric control cabinet.
5). The main motor is connected with the nylon pin of transmission gearbox so as to cut off the nylon pin when torque is overload.
Scope of supply of sjsl36 water ring pelletizer
| No. | Contents | Unit | Quantity | Marks |
| 1 | Twin screw extrusion system | set | 1 | |
| 1.1 | High speed mixer | set | 1 | 50L |
| 1.2 | Main feeding system | set | 1 | 0.75KW |
| 1.3 | SJ36 twin screw extruder | set | 1 | 18.5KW, 44:1 |
| 1.4 | Vacuum venting system | set | 1 | 0.75KW |
| 1.5 | Water recycling system | set | 1 | 0.55KW |
| 1.6 | Hydraulic screen changer | set | 1 | 0.75KW |
| 2 | Electric cabinet | set | 1 | |
| 3 | Water-ring assembly system | set | 1 | |
| 3.1 | Die head | set | 1 | |
| 3.2 | Face cutter | set | 1 | 1.5KW |
| 3.3 | Water-ring cutting cover | set | 1 | |
| 3.4 | Centrifugal dehydrator | set | 1 | 2.2KW, 3KW |
| 3.5 | Production container | set | 1 | 3KW |
| 4 | Documents | set | 1 | |

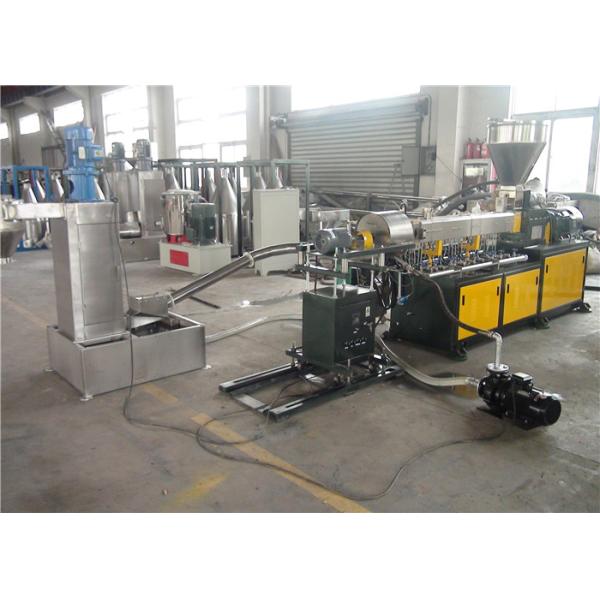

Photo of machine
Main Technical Details of Plastic Pelletizing Machine Models
| Model type | Series | Barrel Diameter (mm) | Screw Diameter (mm) | Screw L/D | screw speed n(r/min) | Main motor power(Kw) | Screw torque T(N.m) | Torque rating (T/A3) | Typical production capacity (kg/h) |
| SJSL20 | A/B | 22 | 21.7 | 32-44 | 500/600 | 4/5.5kw | 30/30 | | |
| SJSL-36 | A/B/C/D | 36 | 35.6 | 32-48 | 400/600 | 11/15/18.5/22 | 125-225 | 4.6-8.3 | 30-120 |
| SJSL-51 | A/B/C/D | 51 | 50.5 | 32-52 | 500/600 | 45/55/75/90 | 405-680 | 5.1-8.5 | 120-400 |
| SJSL-65 | A/B/C/D | 63 | 62.4 | 32-64 | 500/600 | 75/90/110/132 | 680-1200 | 4.8-8.5 | 180-750 |
| SJSL-75 | A/B/C/D | 72 | 71 | 32-64 | 500/600 | 110/132/160/250 | 995-1890 | 4.6-8.7 | 300-1200 |
| SJSL-95 | A/B/C/D | 94 | 93 | 32-64 | 500/600 | 250/315/450/550 | 2260-4510 | 4.7-8.7 | 700-2500 |
| SJSL-135 | A/B/C/D | 135 | 133 | 32-48 | 400/500 | 550/750/900/1200 | 6200-10800 | 4.4-7.7 | 1550-6500 |
